【星坛综艺会18期】DIY:攒一个三脚架

我会做饭做菜，但是不喜欢做，也不喜欢吃。这是我11月里每天给自己蒸的菜：

跟星坛里会做菜的人没法比。只好献丑。



我只会买旧零件，乱攒。





不便宜，但是是自己攒的。

零件：

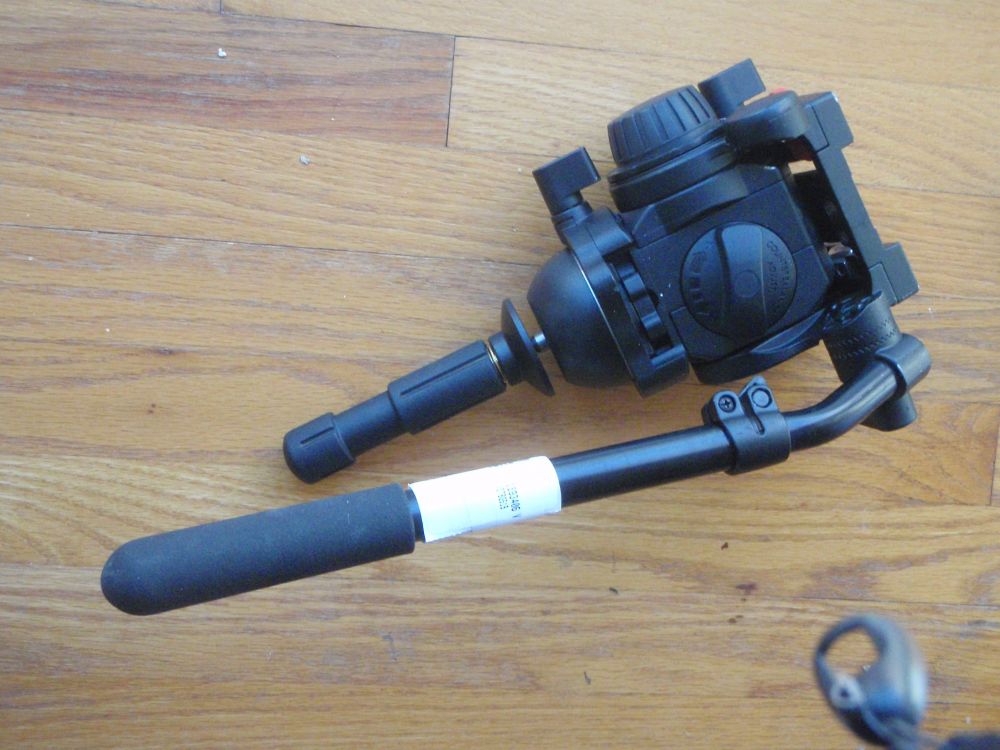

二手的液压云台（fluid head）：Manfrotto 509

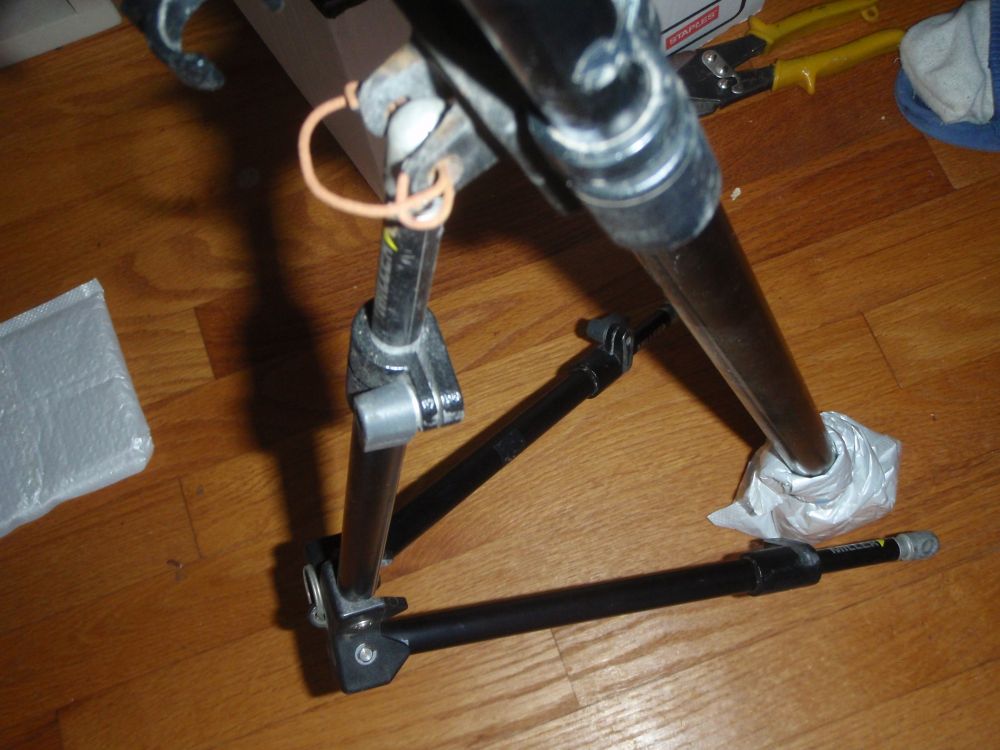

 二手的三脚架的架子：Miller（ 没照全，下面的两根和左边的一根是中间三根支架）：

3根只有一根用锈铁丝连着：

aliexpress买的新的快装板（quick release plate)， 注意2个长边都是黑的:

方法：

1. 把中间3个支架的2个固定在三脚架上：

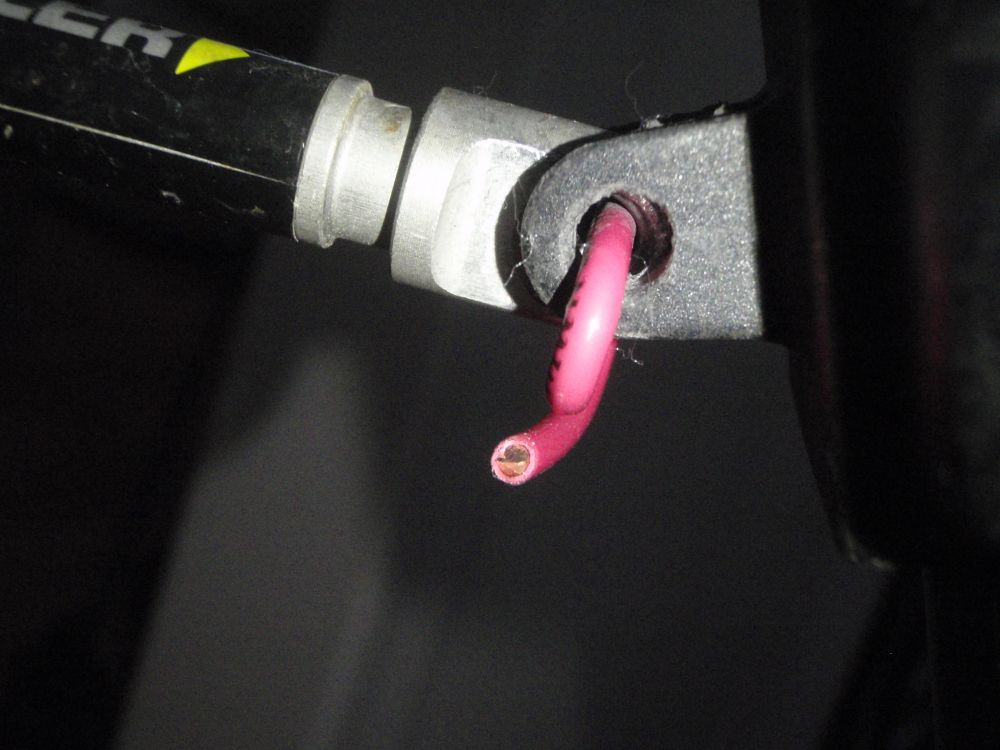

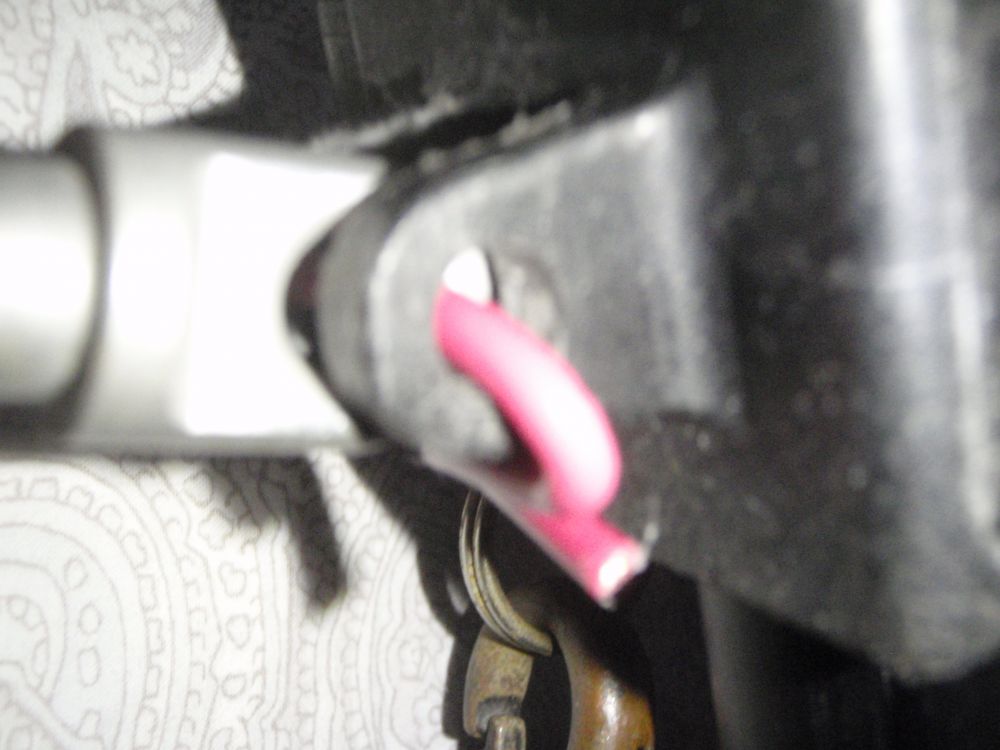

用12号绝缘铜线和剪金属刀：





2. 把液压云台装到三脚架上：

拧松螺丝：

拧松螺丝：

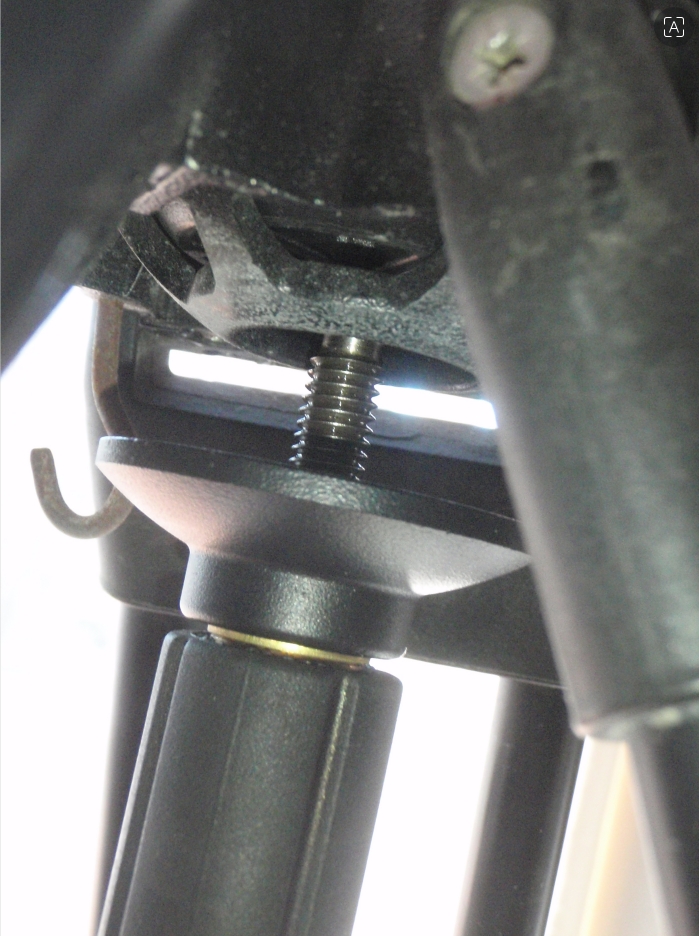

装到三脚架上：

装到三脚架上：

3. 改造快装板：

详见：https://blog.wenxuecity.com/myblog/40376/202512/4924.html

刚买来时，注意2个长边都是黑的：

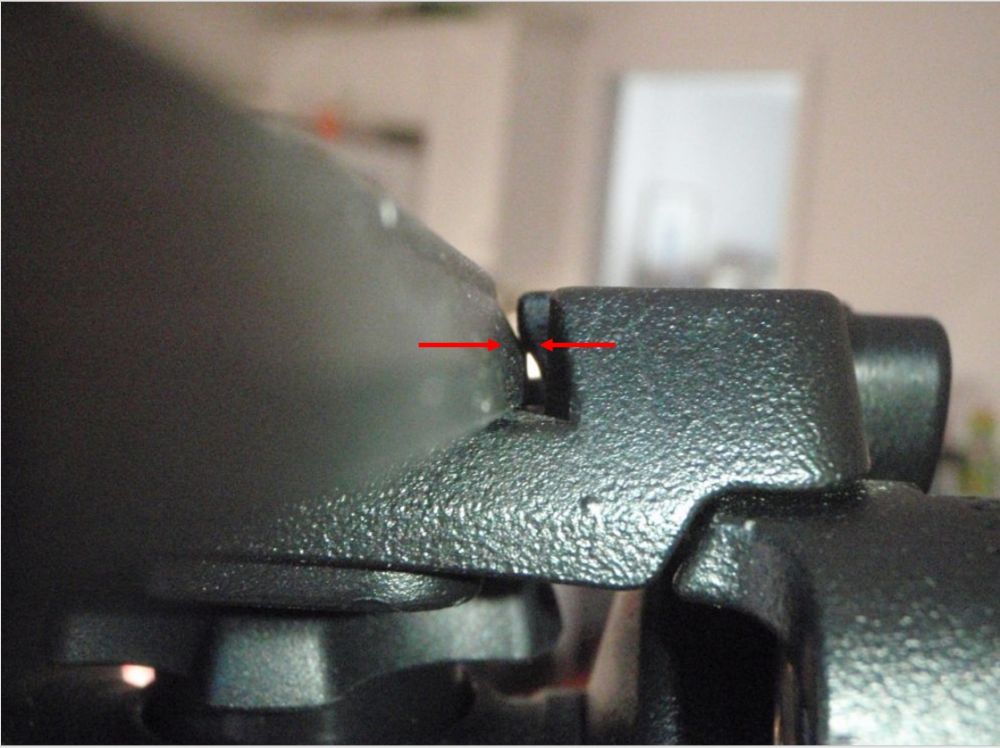

装不到云台上，卡在红线处：

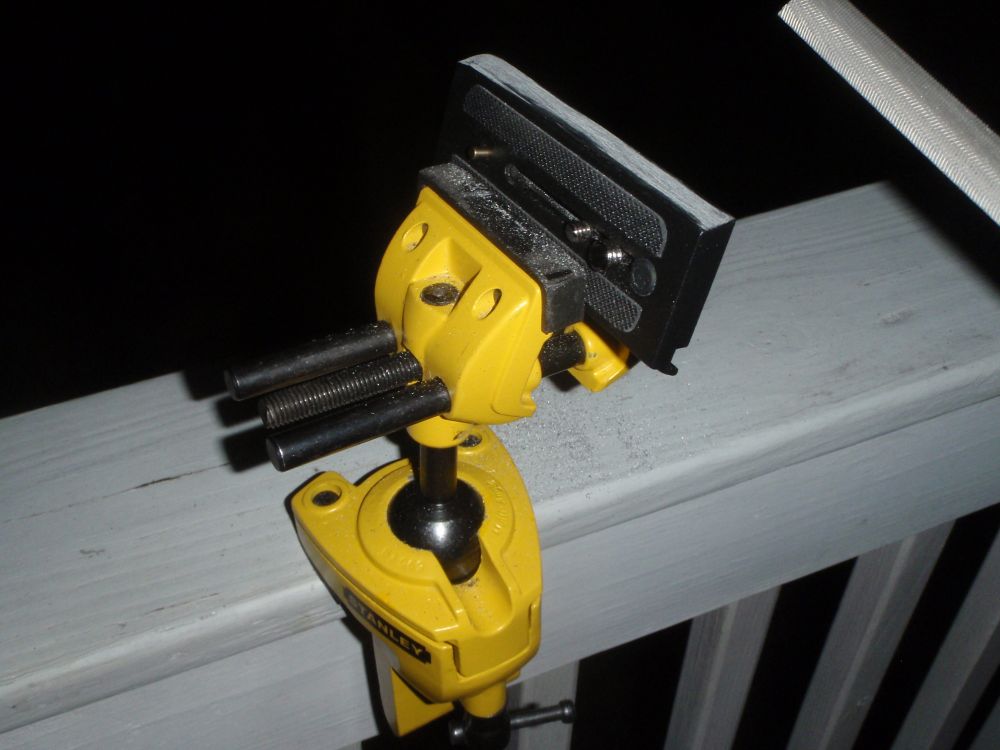

装到台虎钳上，要把红线处锉掉：

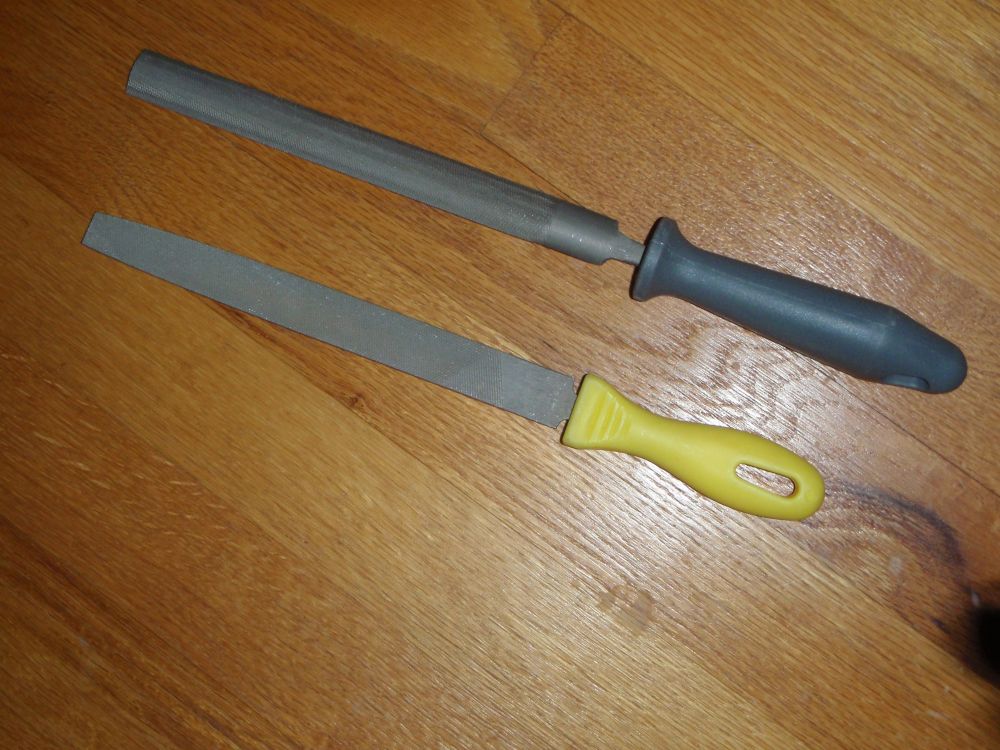

用锉：

锉平：

锉完：

注意4个长面都变白：

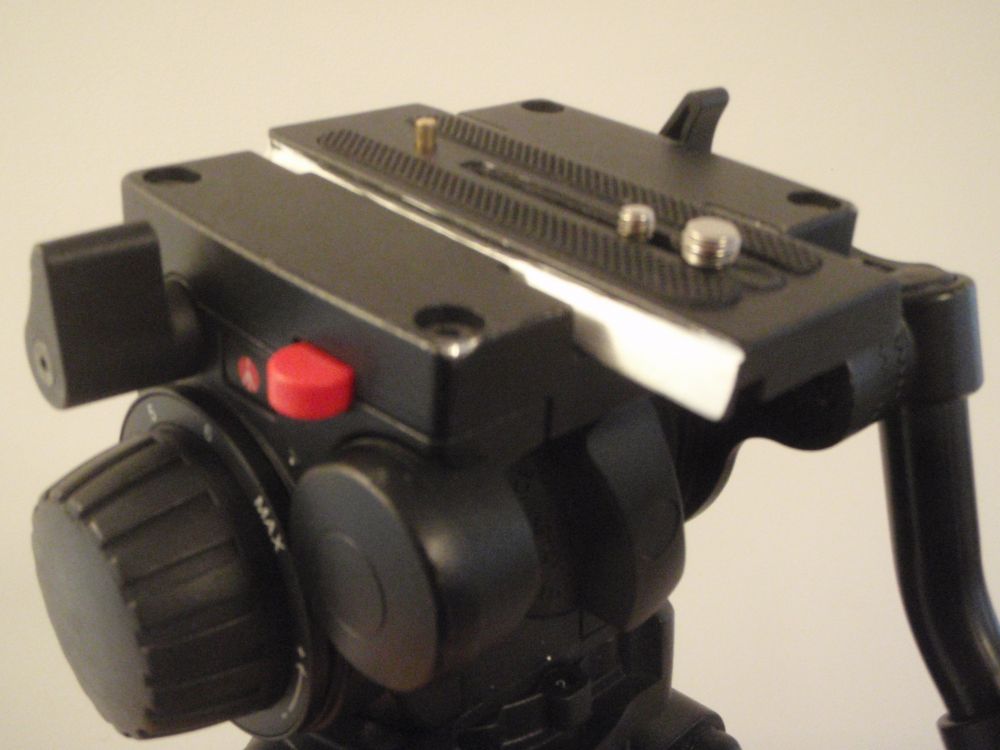

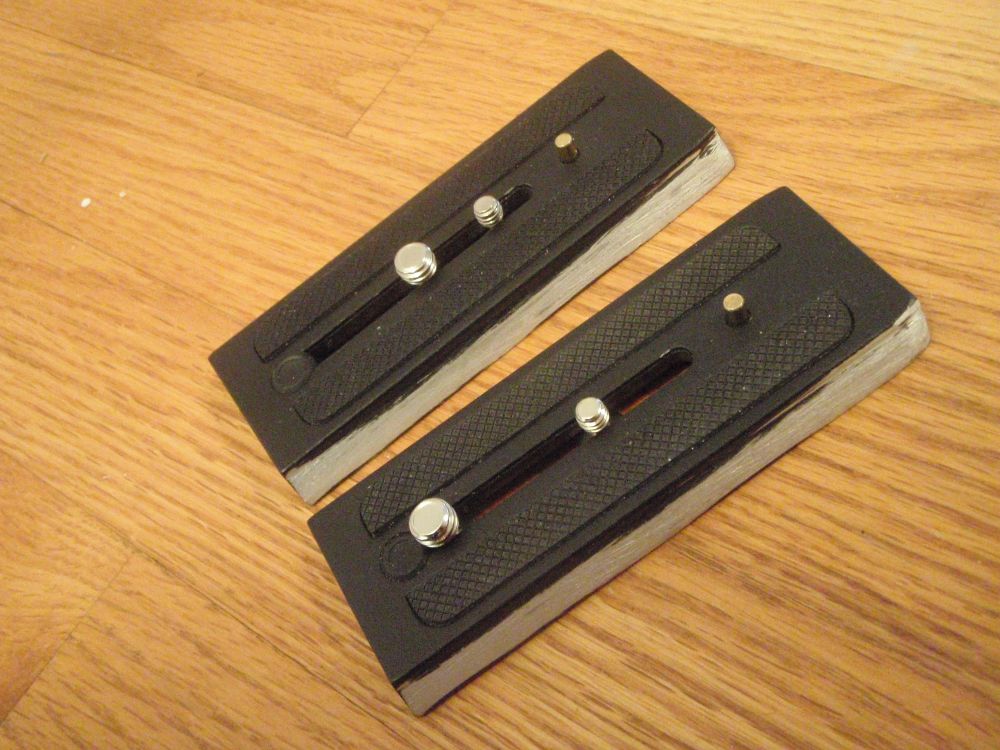

装到液压云台上：

4. 給三个脚穿上鞋：

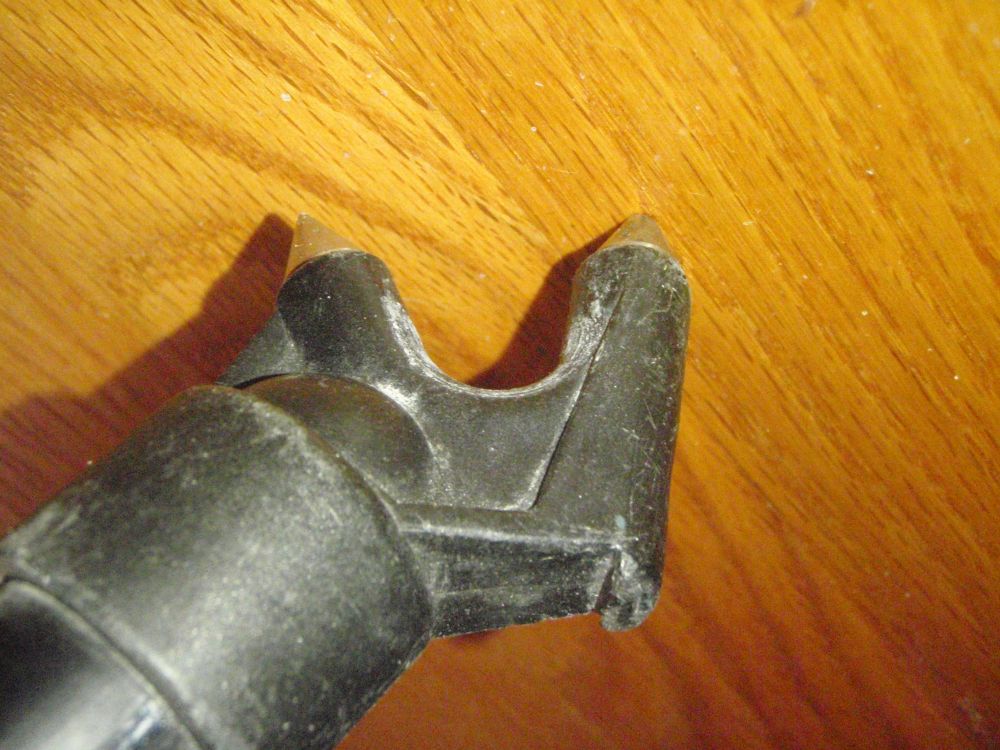

原来的脚上是跳芭蕾舞的尖角：

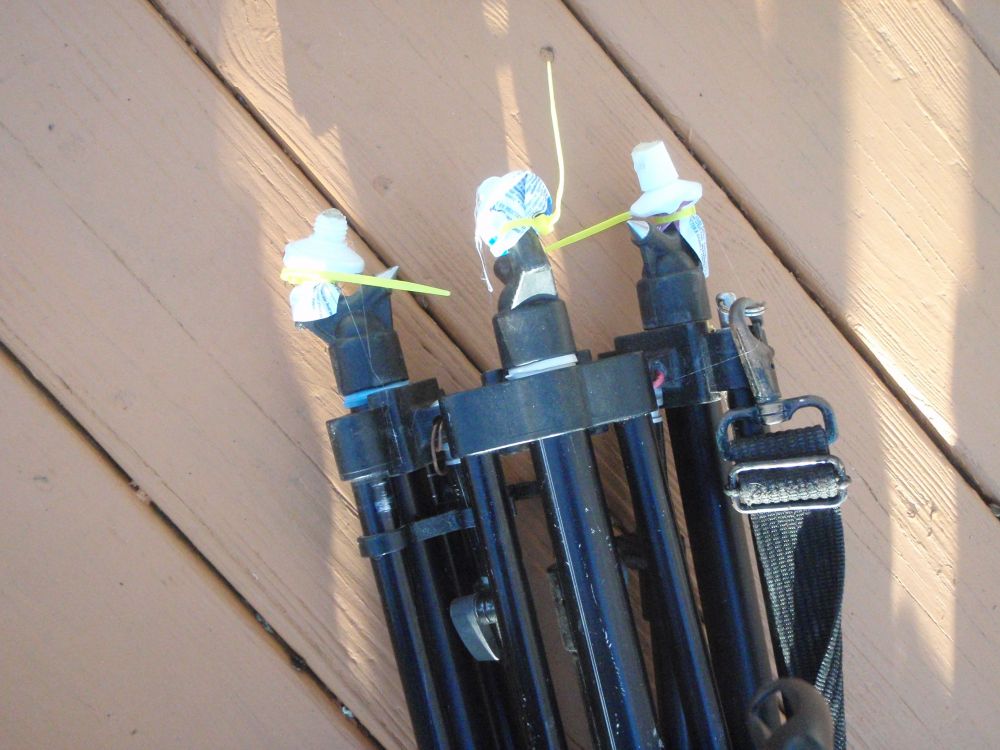

用牙膏皮做了三双鞋：

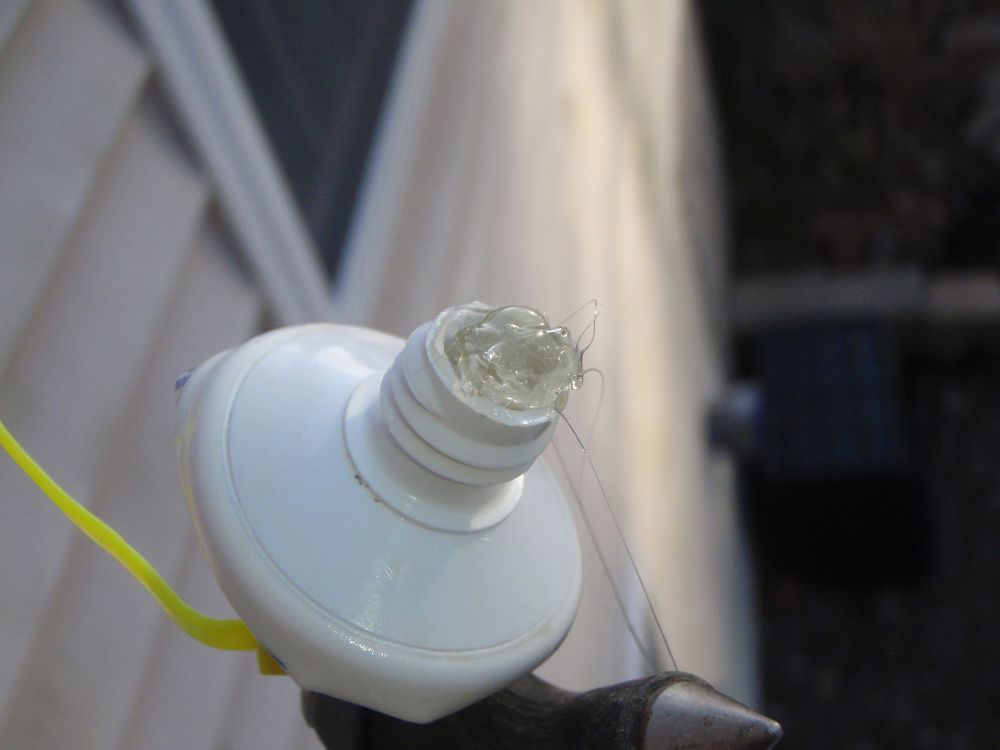

把空洞用热胶填满:

黄的是热胶枪：



填好后：

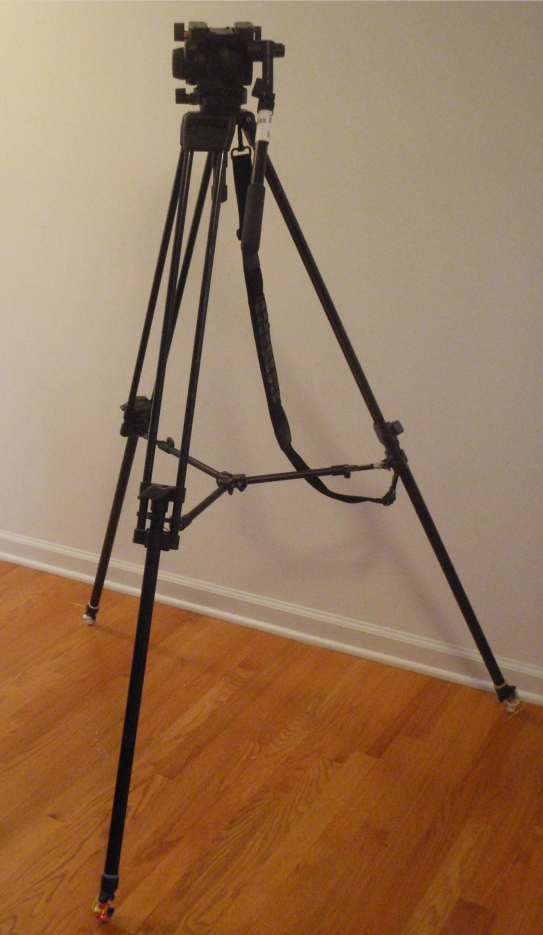

5. 竣工：

6. 用这个三脚架照的：

用红外线720 nm 滤镜：

照片参数：

7. 总结：

耗资近200刀，耗时将近3小时，其中两片快装板用了2小时40分钟。其它就算20分钟吧。

https://bbs.wenxuecity.com/romance/1047976.html

https://bbs.wenxuecity.com/myhouse/15284926.html

附录：

https://www.lensrentals.com/product-assets/2292622b-704b-4be1-9056-5e701f329d92/instructions_Manfrotto_509HD_GB.pdf

https://www.millertripods.com/wp-content/uploads/2024/01/D7412-2_OPM_Sprinter_II_Tripod_Series.pdf



三脚架可以支持55磅

液压云台可以支持22磅
